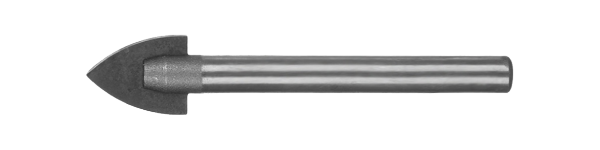

◆ Cross head titanium plating cylindrical shank glass tile drill bits.
◆ For glass ceramic tile drilling.
◆ It is made of high-quality YG6X alloy as raw material. The process of oxy nitriding of the cutter head strengthen the drill hardness.
◆ Strong toughness and wear resistance can be installed in the hand drill and electric drill.
◆ Position drill by making slight dent with the tip before drilling. Small incision resistance. Feature drilling stably, opening neat, smooth, no broken edges, no tremor phenomenon, chip easily.
◆ Professional glass and tile drill bits provide smooth and accurate drilling in ceramic tiles, marble, mirrors and glass.
◆ High quality cemented carbide with a reinforced head that prevents bit cracking and provides a longer life. Hardened steel design stands up to the toughest daily use.
◆ Unique cross angle design, low resistance to cutting, feature drilling stably, fast speed, not breaking the border. Opening neat, smooth, no broken edges, no tremor phenomenon, chip easily.
◆ Note: must be used with water when drilling holes in brittle materials such as glass, ceramic tile, marble, etc.

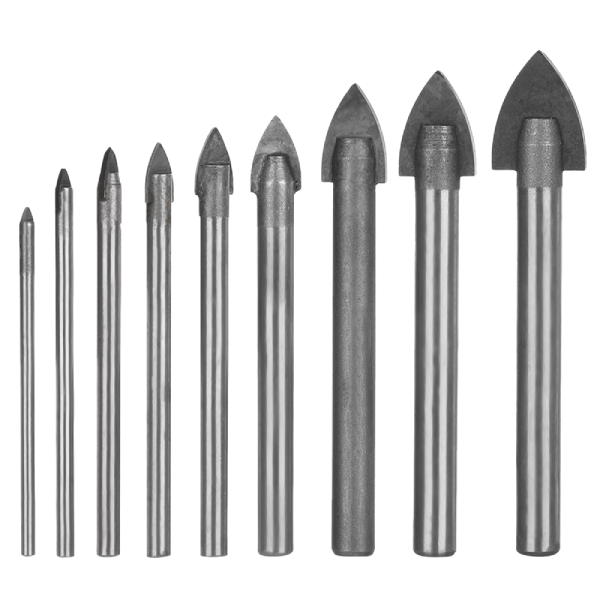

◆ Diameter:3-16
|
Code No. |
Diameter(mm) |
Overall Length(mm) |
|
TC-GTDB001 |
3 |
60 |
|
TC-GTDB002 |
4 |
60 |
|
TC-GTDB003 |
5 |
60 |
|
TC-GTDB004 |
6 |
60 |
|
TC-GTDB005 |
8 |
80 |
|
TC-GTDB006 |
10 |
100 |
|
TC-GTDB007 |
12 |
100 |
|
TC-GTDB008 |
14 |
100 |
|
TC-GTDB009 |
16 |
100 |
|
Code No. |
Diameter(Inches) |
Overall Length(Inches) |
|
TC-GTDB010 |
1/8" |
2-1/2" |
|
TC-GTDB011 |
5/32" |
2-1/2" |
|
TC-GTDB012 |
3/16" |
2-1/2" |
|
TC-GTDB013 |
15/64" |
2-1/2" |
|
TC-GTDB014 |
1/4" |
2-1/2" |
|
TC-GTDB015 |
5/16" |
3-1/2" |
|
TC-GTDB016 |
3/8" |
4" |
|
TC-GTDB017 |
15/32" |
4" |
|
TC-GTDB018 |
1/2" |
4" |
|
TC-GTDB019 |
9/16" |
4" |
|
TC-GTDB020 |
5/8" |
4" |
