DIAMOND SAW BLADE

Product Details

◆ Diamond cutting blades are manufactured with high quality and durable heat-treated manganese steel and diamond. These diamond saw blades have 3 of the most used cutting saws to make sure you are always ready for any project.
◆ Our cutting diamond blades perfectly sharpened to use and can be used several times before any new honing. They have a thinner kerf that favors increases the cutting speed and minimize dust.

Color

Blue/ red /customized

Usage

Marble/ tile/ porcelain /granite / ceramic /bricks

Customized

OEM, ODM

Package

Paper box/ bubble

Warm prompt

The cutting machine must have a safety shield  and the operator must wear protective clothing such as safety clothing, glasses  and masks

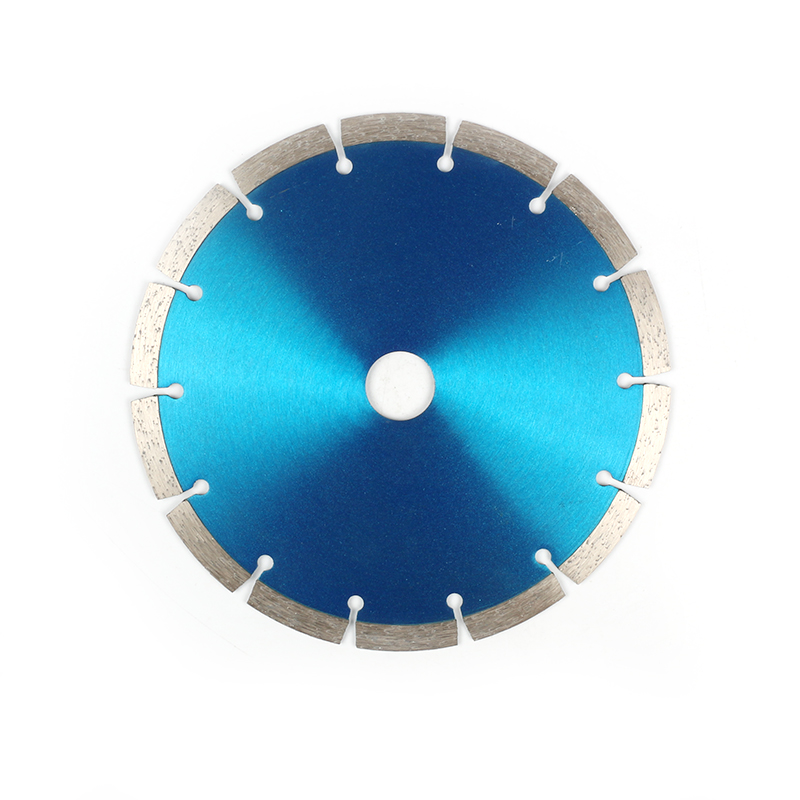

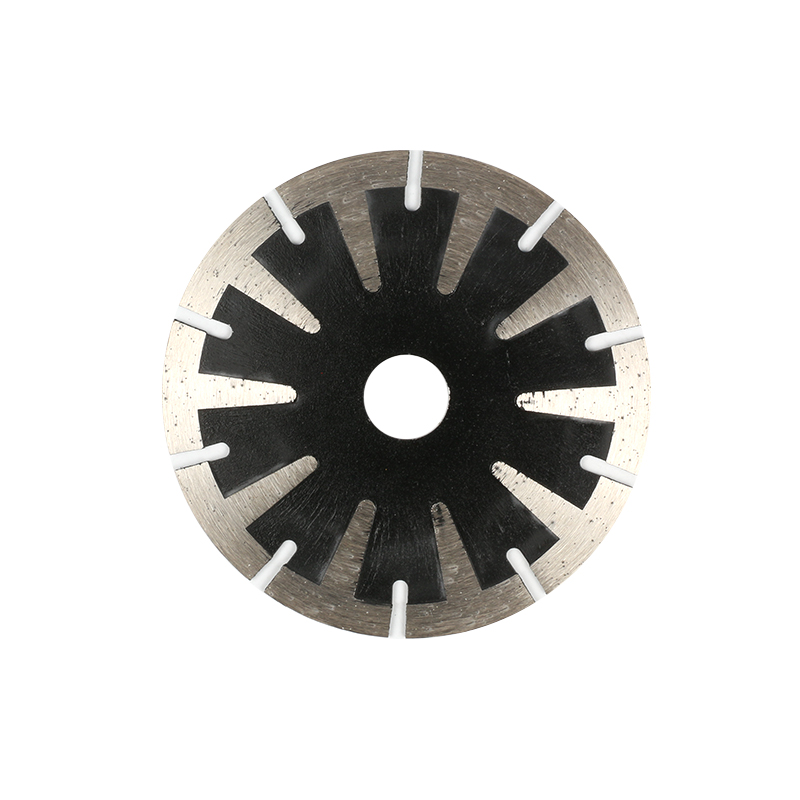

 Segmented Rim

This segmented rim blade provides rough cuts. As a dry cutting blade, it can be used for dry applications without water as it is perfect for cut outs. It is engineered to be used for concrete, brick, concrete pavers, masonry, block, hard or reinforced concrete  and limestone. They allow air flow and cooling of the blade core. The other function of the segments is to allow a better exhaust of debris, for faster cuts.

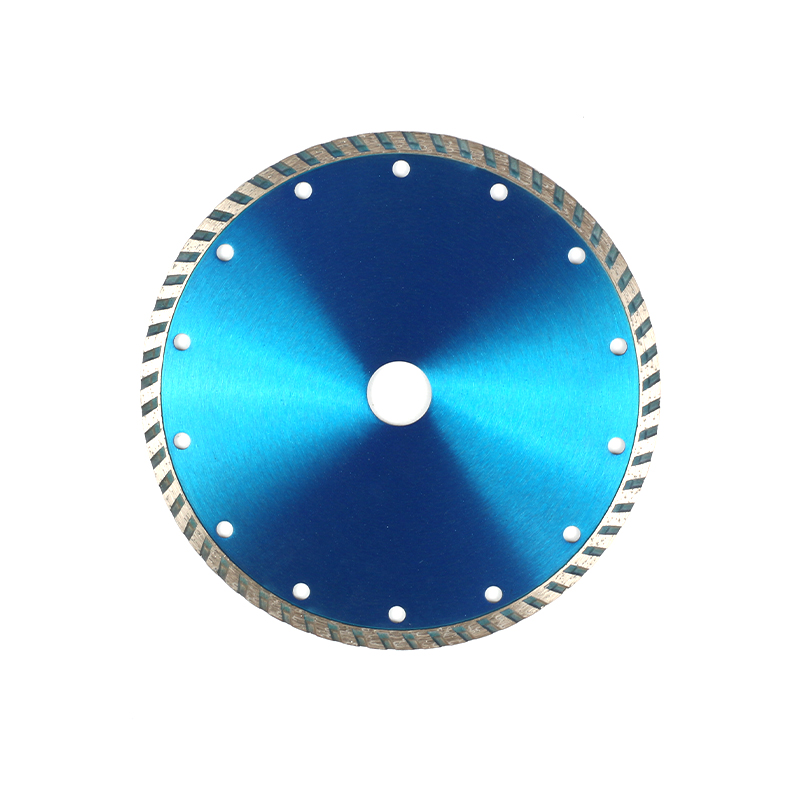

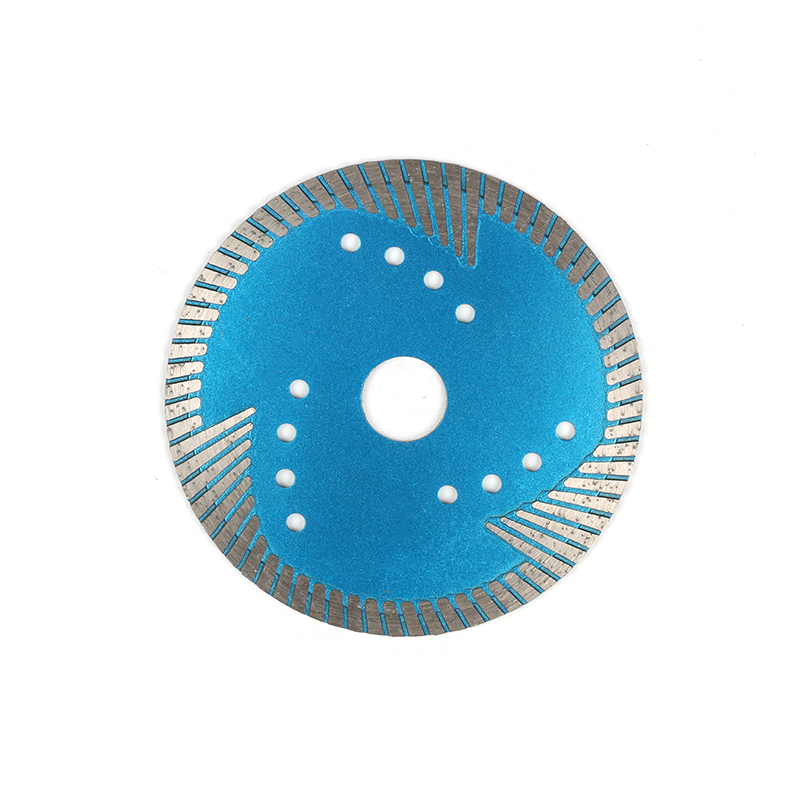

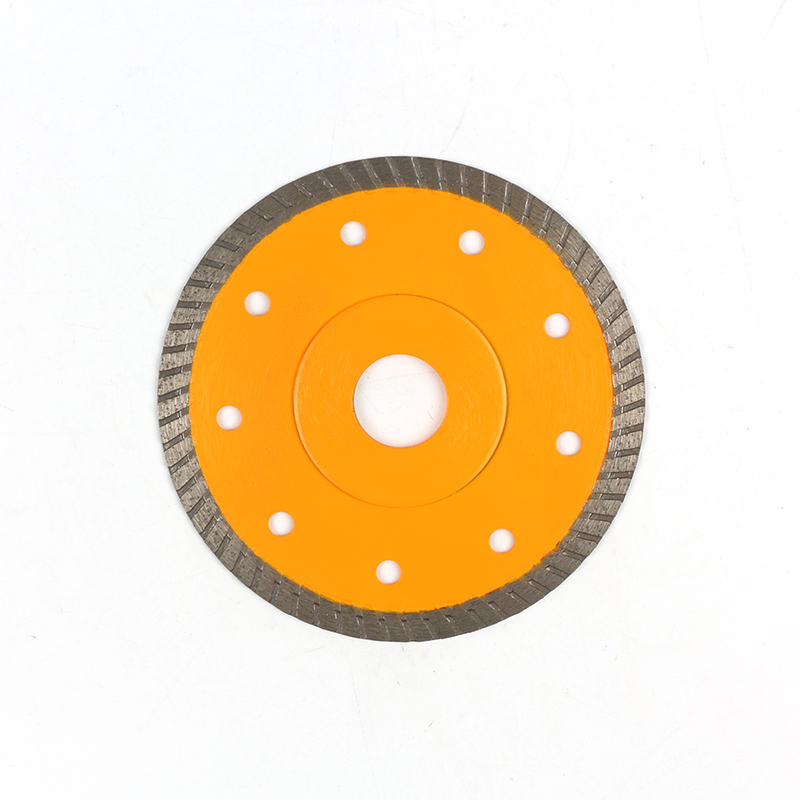

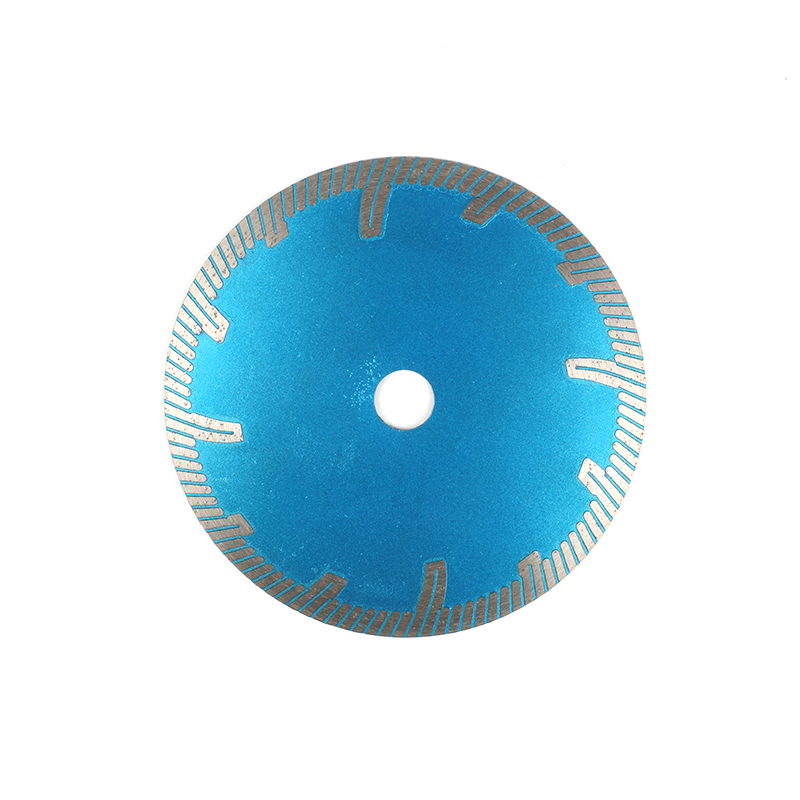

Turbo Rim

Our turbo rim blade is designed to provide fast cuts in both wet and dry applications. The small segments on the diamond rim blade permit rapid cooling of the blade as it allows air to pass through them. This leads to a cooling effect and the scattered through out the blade as well has the same function. With its perfect design, this blade cuts faster, while pushing the material out. This blade effectively cuts concrete, brick  and limestone materials.

Continuous Rim

The continuous rim blade is perfect when you need to perform wet cuts. The first advantage when using our diamond cutting continuous rim blade is that you can use water when cutting material. The water significantly cools down the blade, enhancing its life and it washes away any debris to help lessening friction in the cutting zone. With this cutting blade, you can obtain fast results with reduced dust.

Metric Size: 105-350



Code No.

Metric (mm)

Segment height (mm)

Hole Dia. (mm)

 Segmented Rim

TC-DSB001

105

7/8/10/12

25.4/22.23/20/16

TC-DSB002

110

7/8/10/12

25.4/22.23/20/16

TC-DSB003

115

7/8/10/12

25.4/22.23/20/16

TC-DSB004

125

7/8/10/12/14

25.4/22.23/20/16

TC-DSB005

150

7/8/10/12/14

25.4/22.23/20/16

TC-DSB006

180

7/8/10/12/14

25.4/22.23/20/16

TC-DSB007

230

7/8/10/12/14

25.4/22.23/20/16

TC-DSB008

250

7/8/10/12/14

25.4/22.23/20/16

TC-DSB009

300

7/8/10/12/14

25.4/22.23/20

TC-DSB010

350

7/8/10/12/14

25.4/22.23/20

  Turbo Rim

TC-DSB011

105

7/8/10/12

25.4/22.23/20/16

TC-DSB012

110

7/8/10/12

25.4/22.23/20/16

TC-DSB013

115

7/8/10/12

25.4/22.23/20/16

TC-DSB014

125

7/8/10/12/14

25.4/22.23/20/16

TC-DSB015

150

7/8/10/12/14

25.4/22.23/20/16

TC-DSB016

180

7/8/10/12/14

25.4/22.23/20/16

TC-DSB017

230

7/8/10/12/14

25.4/22.23/20/16

TC-DSB018

250

7/8/10/12/14

25.4/22.23/20/16

TC-DSB019

300

7/8/10/12/14

25.4/22.23/20

TC-DSB020

350

7/8/10/12/14

25.4/22.23/20

Continuous Rim

TC-DSB021

105

5/7/8/10/12

25.4/22.23/20/16

TC-DSB022

110

5/7/8/10/12

25.4/22.23/20/16

TC-DSB023

115

5/7/8/10/12

25.4/22.23/20/16

TC-DSB024

125

5/7/8/10/12/14

25.4/22.23/20/16

TC-DSB025

150

5/7/8/10/12/14

25.4/22.23/20/16

TC-DSB026

180

5/7/8/10/12/14

25.4/22.23/20/16

TC-DSB027

230

5/7/8/10/12/14

25.4/22.23/20/16

TC-DSB028

250

5/7/8/10/12/14

25.4/22.23/20/16

TC-DSB029

300

5/7/8/10/12/14

25.4/22.23/20

TC-DSB030

350

7/8/10/12/14

25.4/22.23/20
